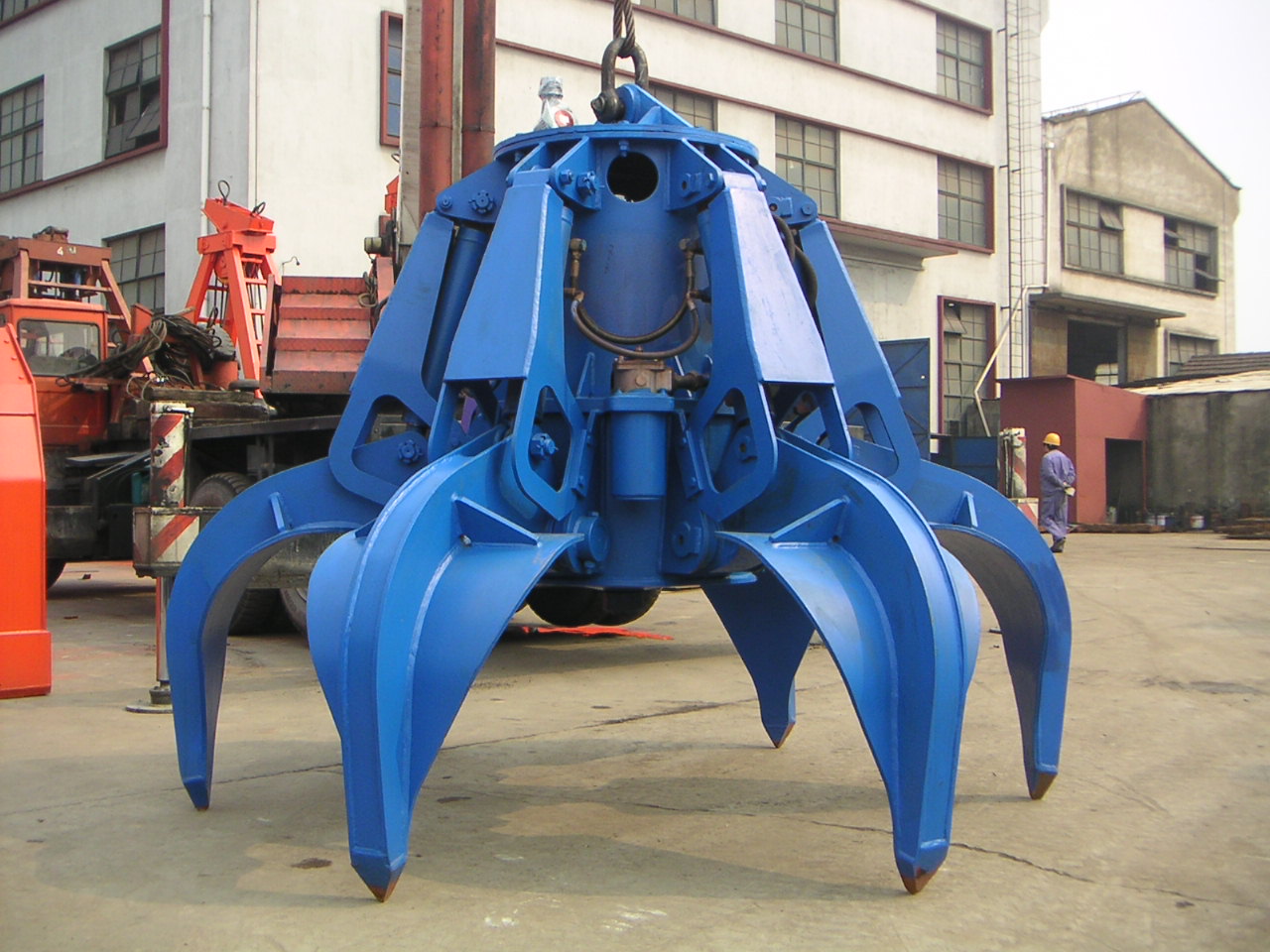

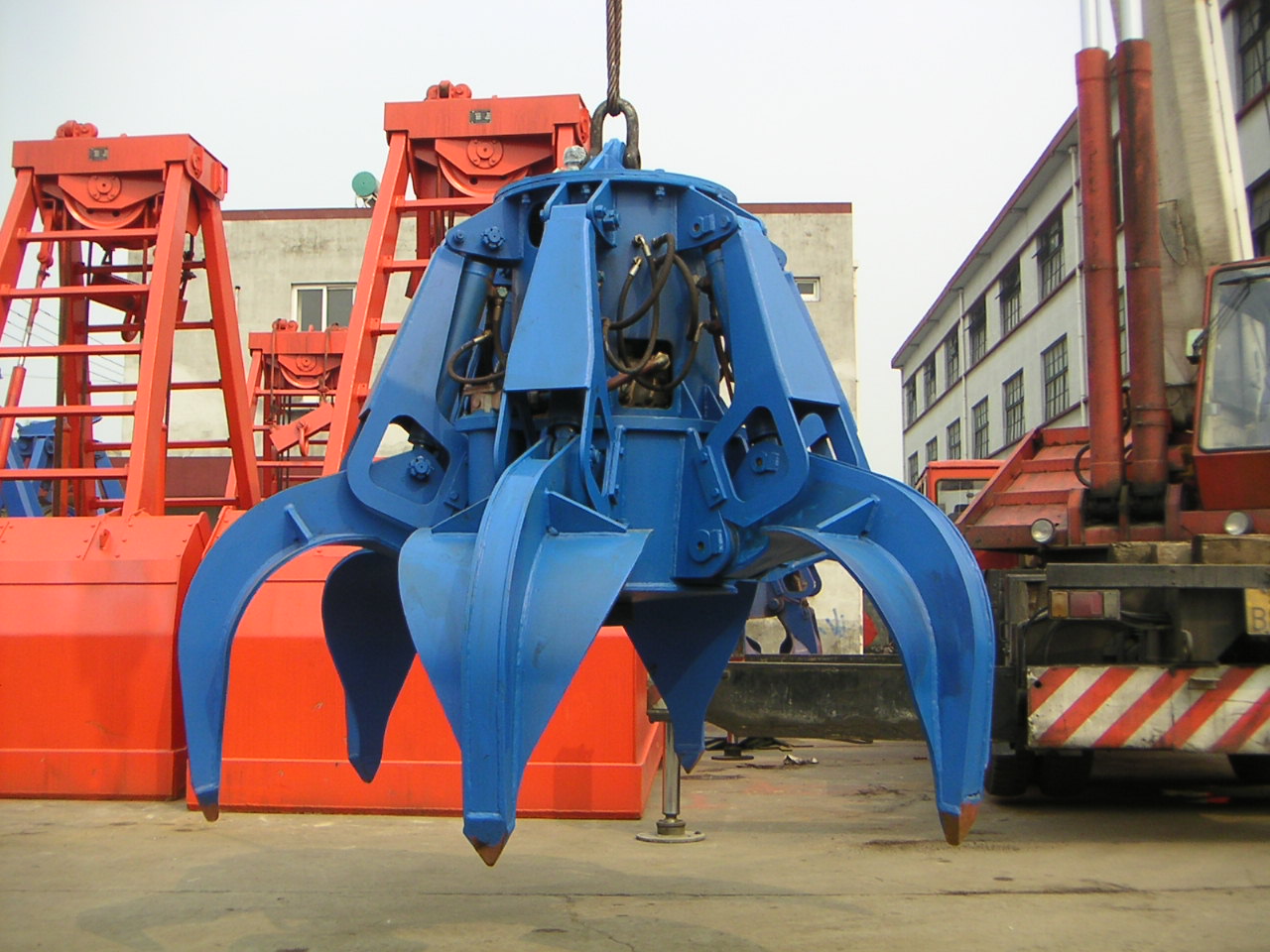

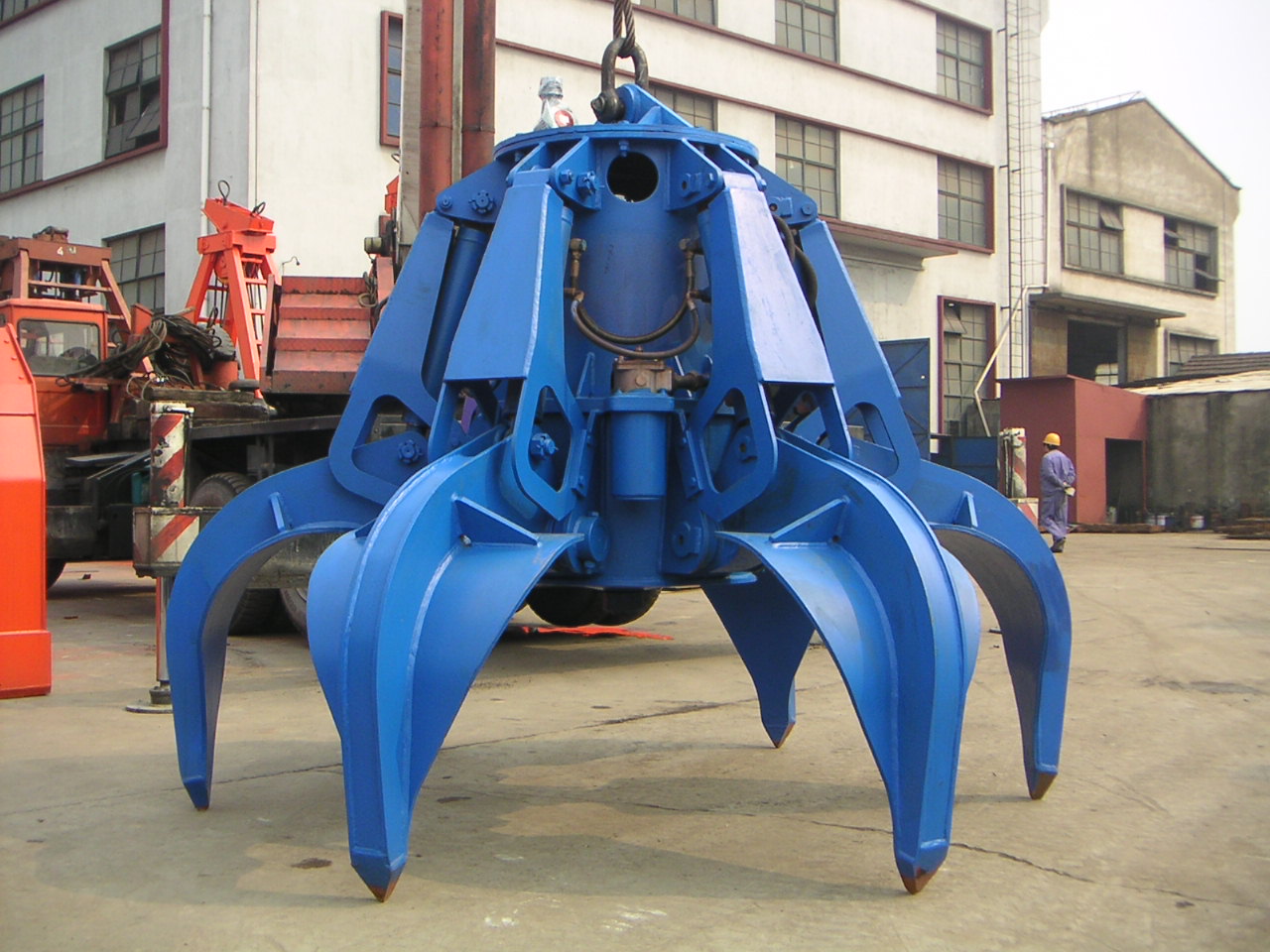

Motor-hydraulic Orange Peel Garbage Grab

Motor-Hydraulic Garbage Grab has hydraulic power and control system itself, and the hydraulic power system is imported from Europe and USA. The grab uses constant output pump and servo system. The flow of pump can change by itself according to working pressure. When the pressure reaches the max pressure, the flow is almost zero, so it can reduce the overflow, and reduce the temperature rise of oil.

Phone: +86-21-68855558
E-mail: [email protected]

Request a quote Send E-mail

Description Parameter Application Inquiry

Description

Low temperature rise; 24 hours working a day; Motor-Hydraulic Garbage Grab has hydraulic power and control system itself, and the hydraulic power system is imported from Europe and USA. The grab uses constant output pump and servo system. The flow of pump can change by itself according to working pressure. When the pressure reaches the max pressure, the flow is almost zero, so it can reduce the overflow, and reduce the temperature rise of oil. The opening and closing is controlled by valves or positive inversion motor which ensures the grab can positive inversion rotate frequently. The grab can be designed as half-close or full-open type with long teeth. The peels of the grab are particular, it is easy to grab garbage. The grab has six or eight peels, and each peel is driven by an oil cylinder, so the material won’t leak.

Parameter

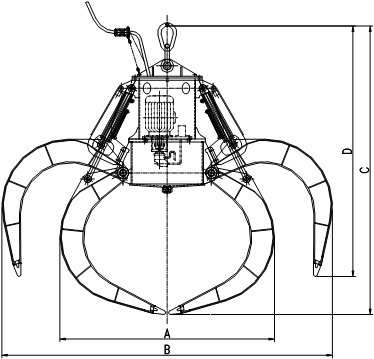

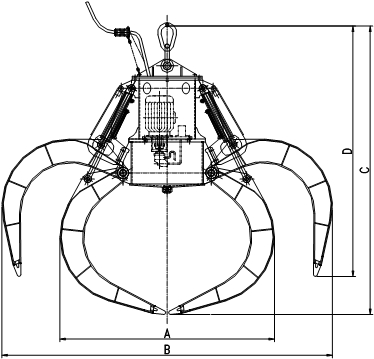

Type and Size	Volume m3	mm Dimensions				kg Empty Weight			KW Power		s Close time	Kg/cm2 Pressure	t SWL
Type and Size	Volume m3	A	B	C	D	Full open	Half open	Full close	380V 50Hz	440V 60Hz	s Close time	Kg/cm2 Pressure	t SWL
DYD5[2.5]2.6	2.5	2247	3572	3214	2895	2450	2600	2800	18.5	21	17	200	5
DYD8[3.2]3.5	3.2	2604	3683	3214	2876	3300	3500	3700	18.5	21	20	200	8
DYD10[5]4.5	5	3060	4420	3720	3295	4300	4500	4800	22	26	19	200	10
DYD16[8]5.6	8	3463	5288	3930	3294	5300	5600	5900	30	35	16	200	16
DYD20[12]8	12	3960	5850	4560	4100	7800	8000	8300	37	43	25	200	20
DYD25[17]9	17	4200	6100	4780	4400	8700	9000	9400	45	52	25	200	25
