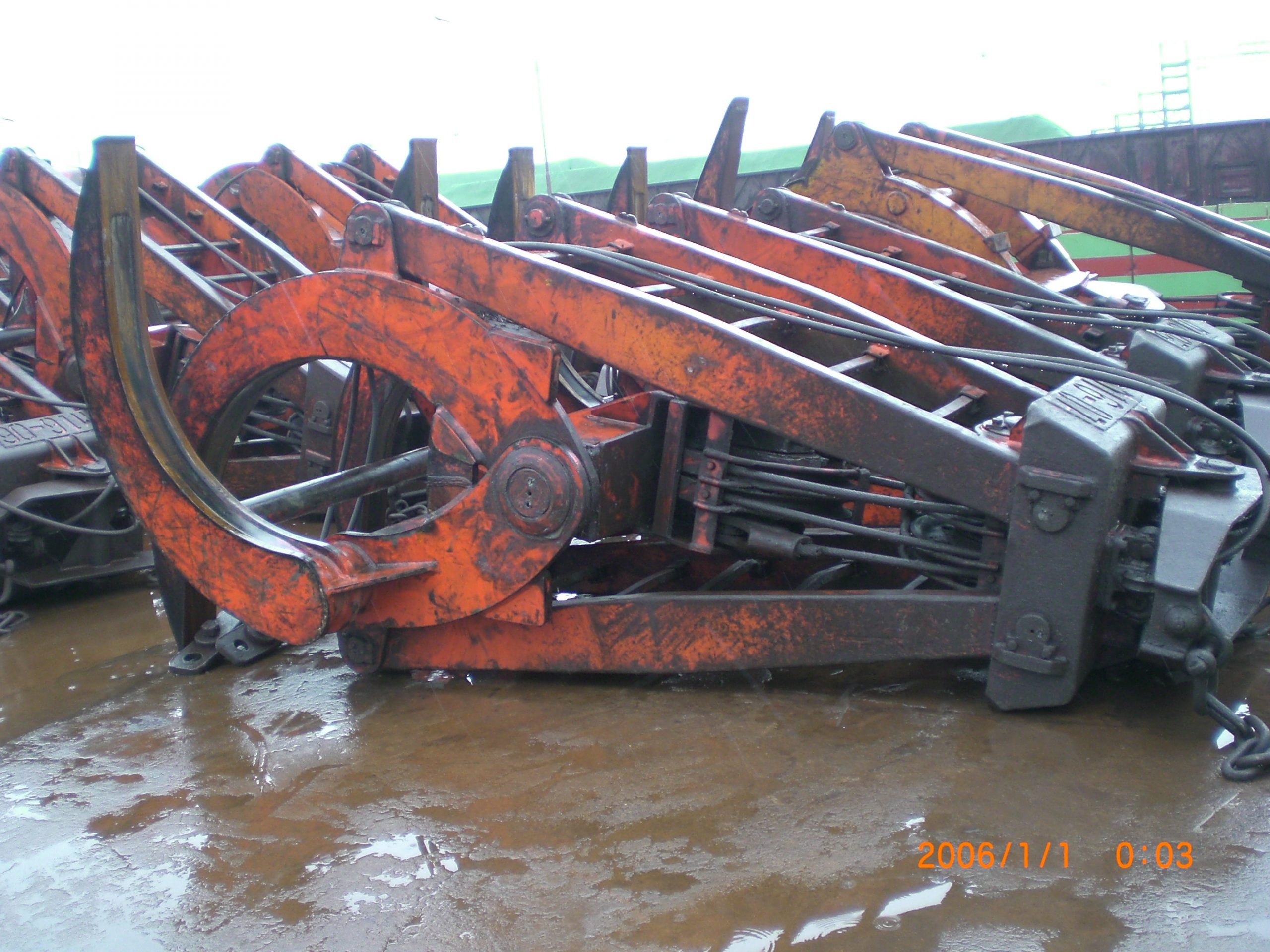

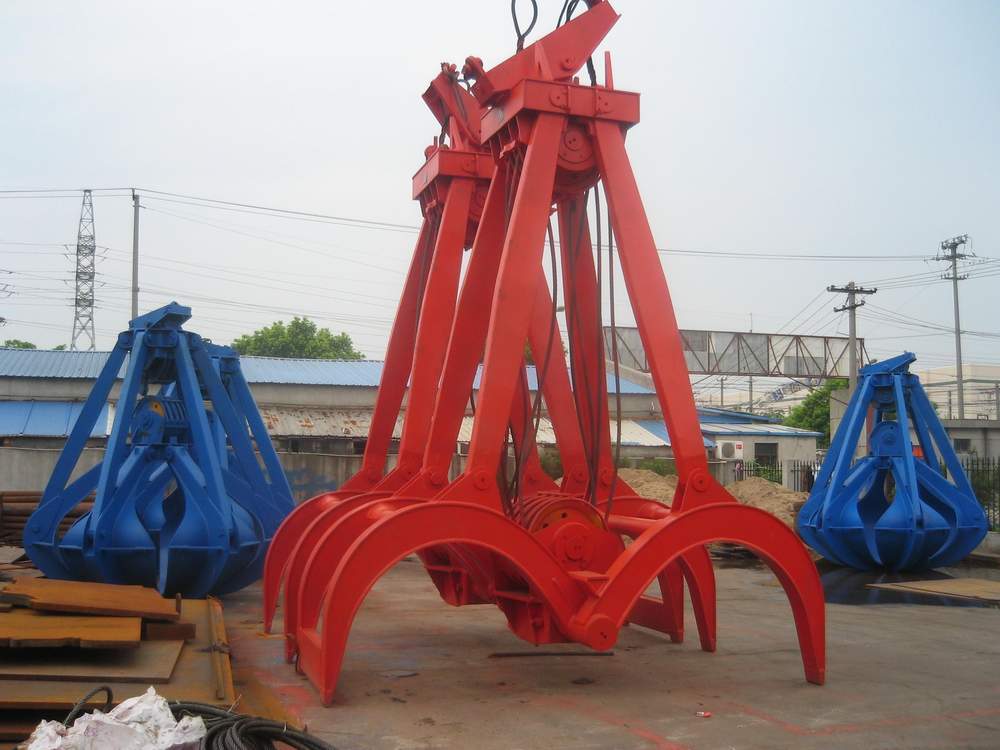

4-rope timber grab is equipped for crane, which has four ropes. The kind of grab is simple structure, convenient operation, and single rope grab has novel opening and closing mechanism, reliable action, which is a kind of efficient tool for loading and unloading bulk log, and which is suitable to be used on the working site such as port, forestry centre, woodyard. The lifting capacity of crane is normally 5t-25t.
4-rope timber grab is equipped for crane, which has four ropes. The kind of grab is simple structure, convenient operation, and single rope grab has novel opening and closing mechanism, reliable action, which is a kind of efficient tool for loading and unloading bulk log, and which is suitable to be used on the working site such as port, forestry centre, woodyard. The lifting capacity of crane is normally 5t-25t.
| Type and Size | t SWL | m2
Max. Area |
t Dead Weight | (mm) Dimensions | (mm)
Sheave Dia. |
(m)
Use Height |
(mm)
Steel Rope Dia |
||||
| A | B | C | φD | E | |||||||
| CM5[1.7]2.2 | 5 | 1.7 | 2.2 | 1400 | 3467 | 3027 | 215 | 3807 | Ø400 | 11.5 | Ø18.5 |
| CM10[2.5]4 | 10 | 2.5 | 4 | 1800 | 4108 | 3603 | 500 | 4451 | Ø445 | 14 | Ø21.5 |
| CM16[1.9]4.4 | 16 | 1.9 | 4.4 | 2000 | 3475 | 3968 | 600 | 4857 | Ø650 | 14 | Ø28 |
| CM25[2.3]6.2 | 25 | 2.3 | 6.2 | 2500 | 3819 | 4551 | 500 | 5453 | Ø720 | 14.5 | Ø32 |
Note: 1.As the products have been improved, we will not advice another.
2.We can design and produce the grab according to user’s demand.
1.4-rope timber grab is equipped for crane, which has four ropes. The kind of grab is simple structure, convenient operation, and single rope grab has novel opening and closing mechanism, reliable action, which is a kind of efficient tool for loading and unloading bulk log.
